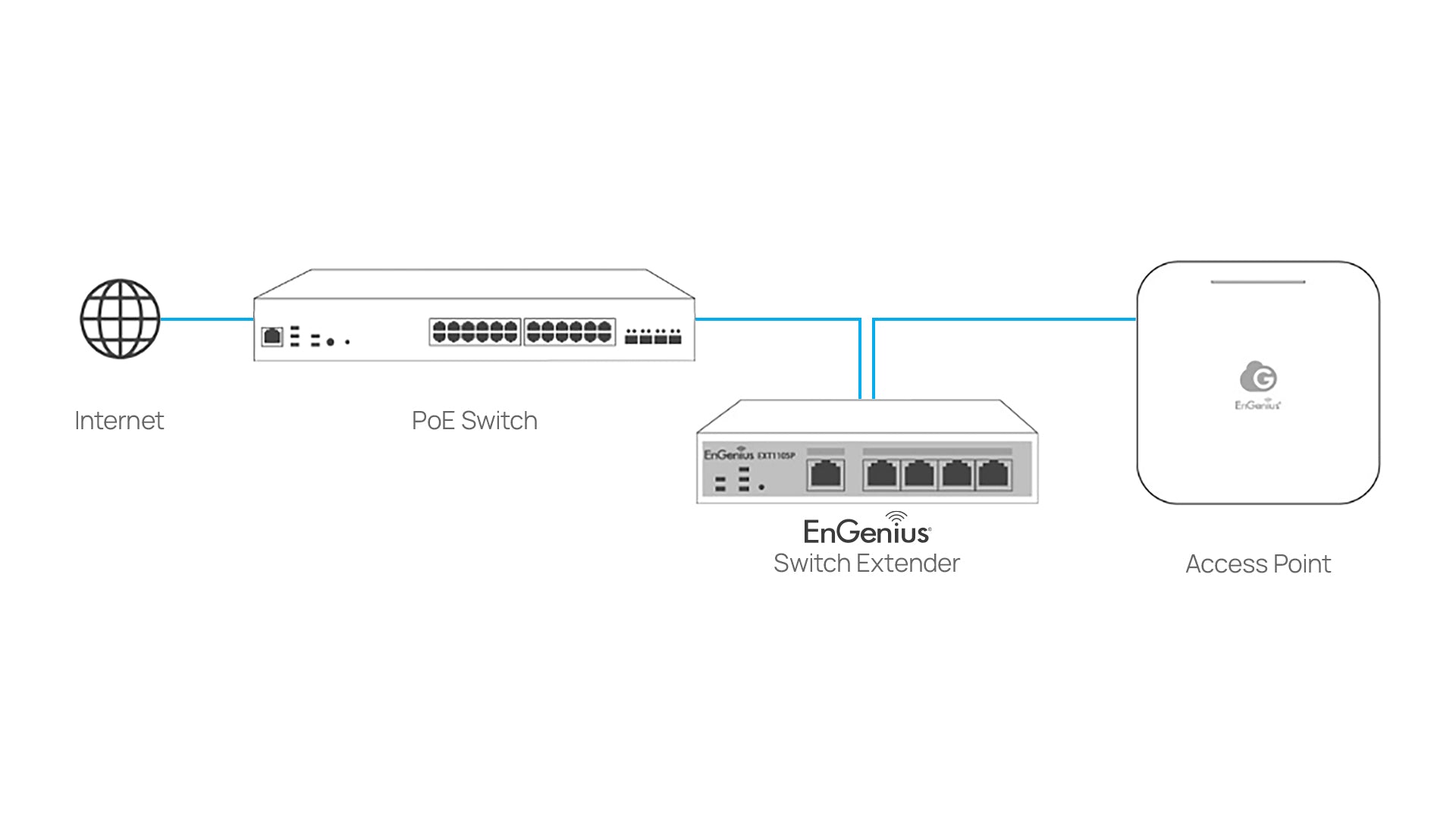

• Physical Distance - Achieving extensive coverage demands flexible, simplified, and long-distance deployment solutions.

• Cost Constraints - Network expansion can be cost-prohibitive; Businesses and institutions require economical alternatives to safeguard their financial well-being. EnGenius Switch Extender solution minimizes expenses.

• Power Availability - Many remote locations lack readily available power sources for network devices. Deploying in locations with power constraints or a lack of power outlet can indeed pose challenges. EnGenius Switch Extender effectively addresses power constraints and lack of power outlets.

• Deployment Complexity - Deploying network infrastructure in remote or diverse locations demands high technical expertise. Complex installation processes, specialized equipment, and skilled technicians are often prerequisites, leading to delays and increased deployment costs. Simplify complex technical details with user-friendly design, efficient cloud management, and easy deployment.

• VLAN Trunking - Extending network segmentation to encompass every room, ensuring that each resident has VLAN-based networks within their apartments or dorms.

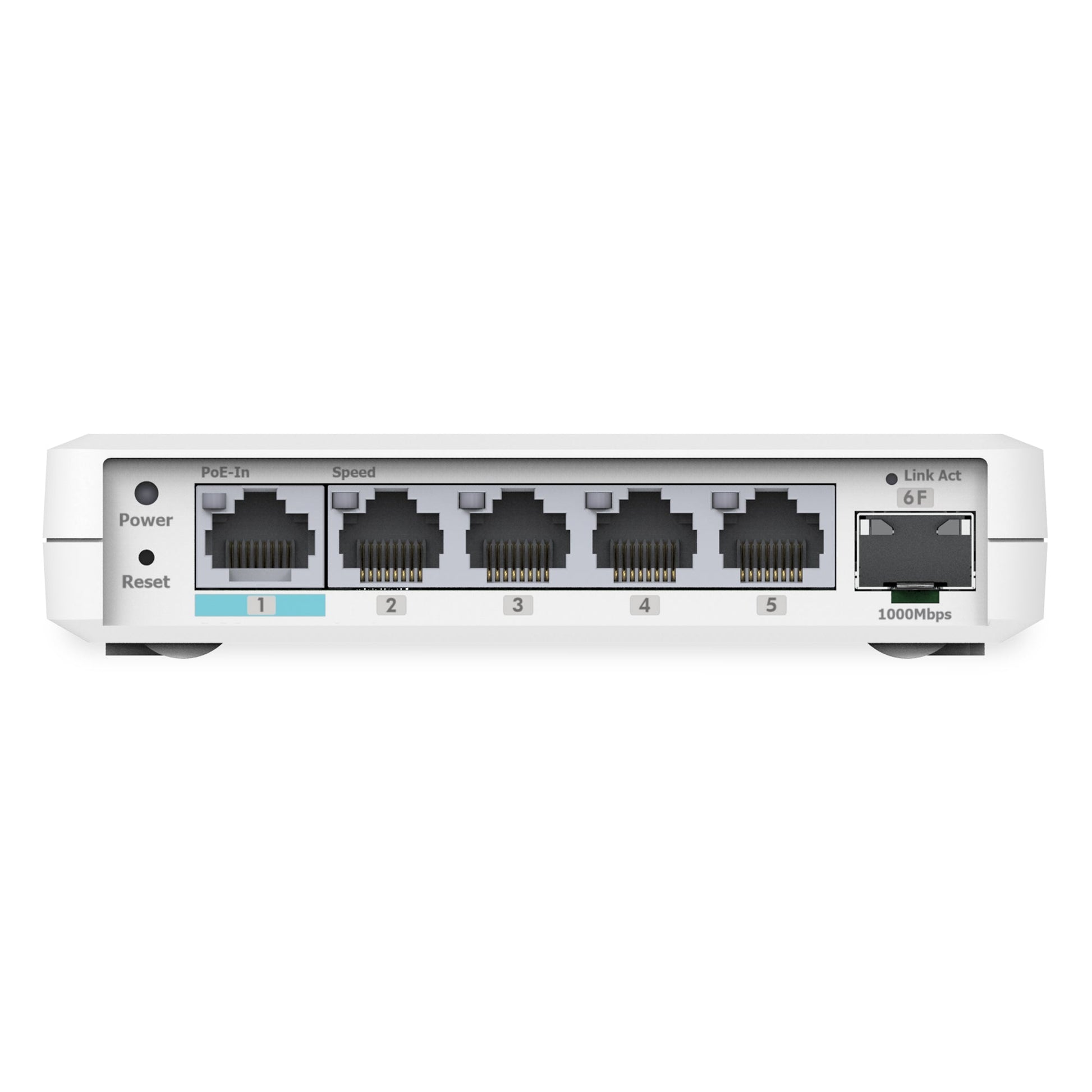

• 5 10/100/1000 Base-T GbE ports

• 1 10/100/1000 SFP Port

• 12 Gbps switching capacity

• Quick-scan device registration, remote monitoring, and troubleshooting

• Real-time system metrics, analytics, and remote configurations

• IGMP snooping provides advanced multicast filtering & network efficiency

• Voice VLAN for fast, reliable deployment of VoIP services / Voice VLAN facilitates the quick and reliable deployment of VoIP (Voice over Internet Protocol) services

Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet

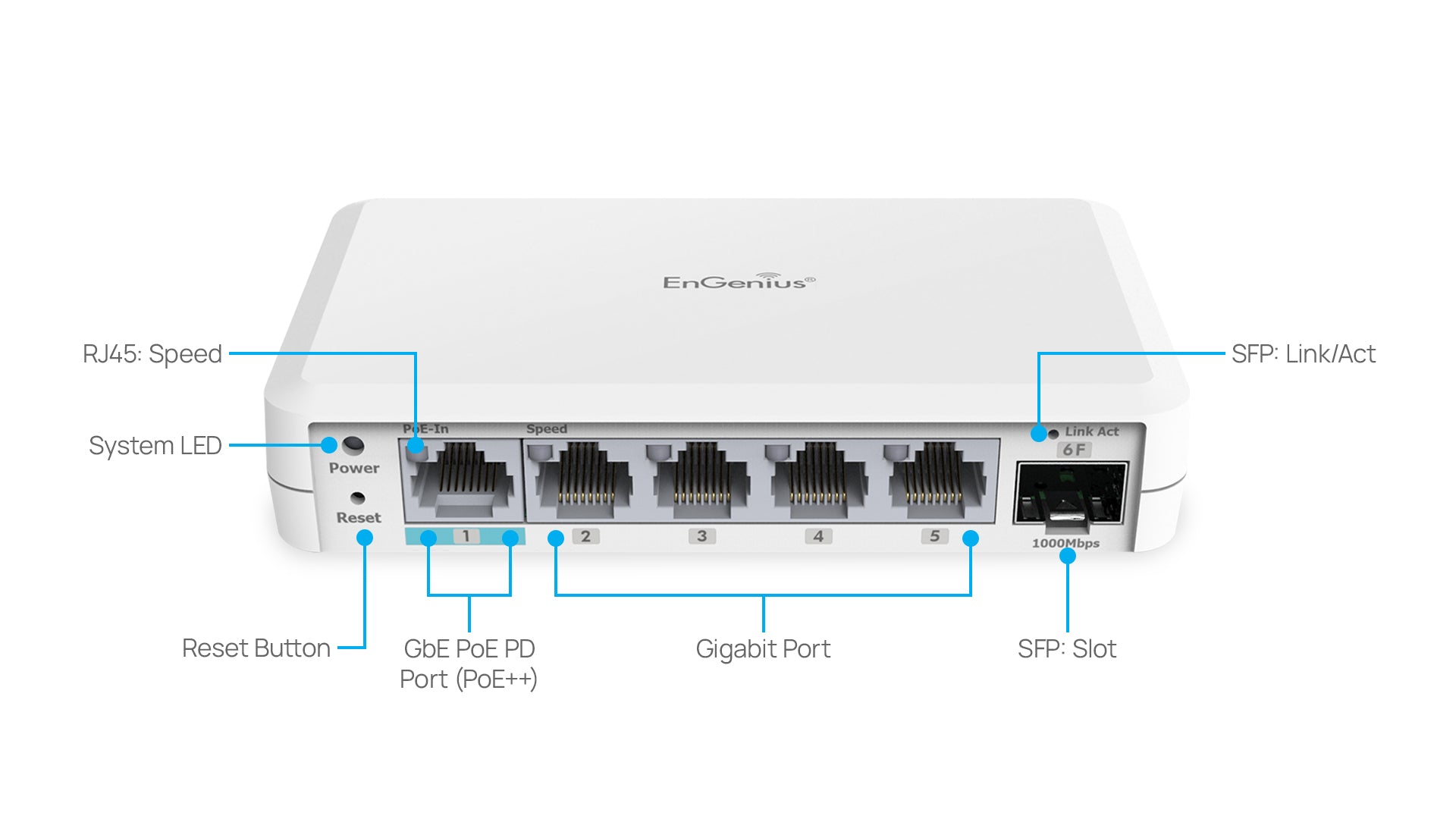

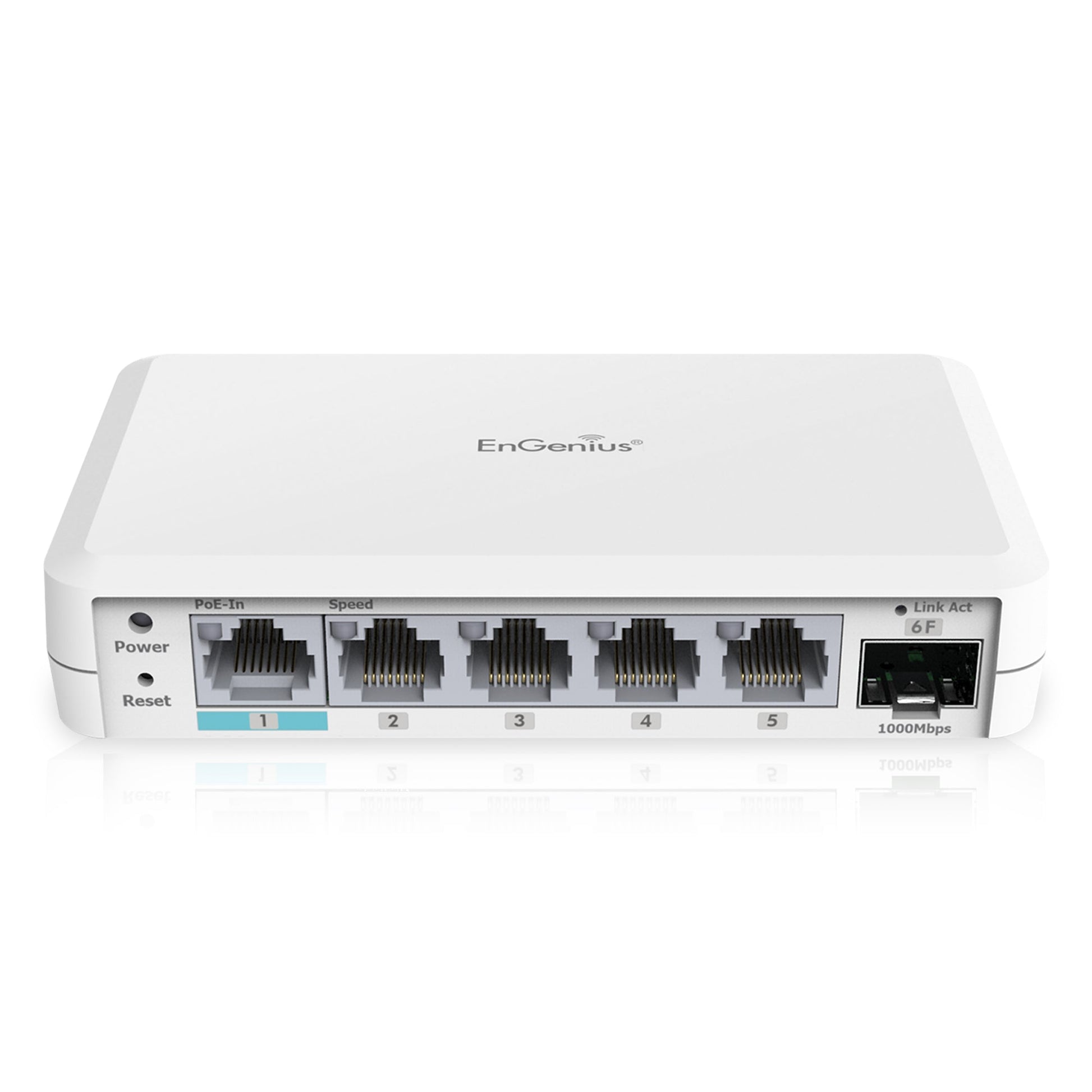

Network Ports
5 10/100/1000 Mbps Ports
1 10/100/1000 Mbps SFP Port

Power Source
PoE Power Delivery / PoE In (Port 1) supports 802.3af/at/bt
Type-C power source (come with power adapter)

Switching Capacity
12 Gbps

Flash Memory
32MB

LED Indicators
Port LED

Ports
Link/Activity/Speed (per Ethernet port)

MAC Address Table
8K

Jumbo Frame
10K

Multicast Group
Max 8 groups

QoS Number of Priority Queues
8

QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP

802.1w Rapid Spanning Tree
Domain Name System (DNS) settings
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot Switch
Find Me

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

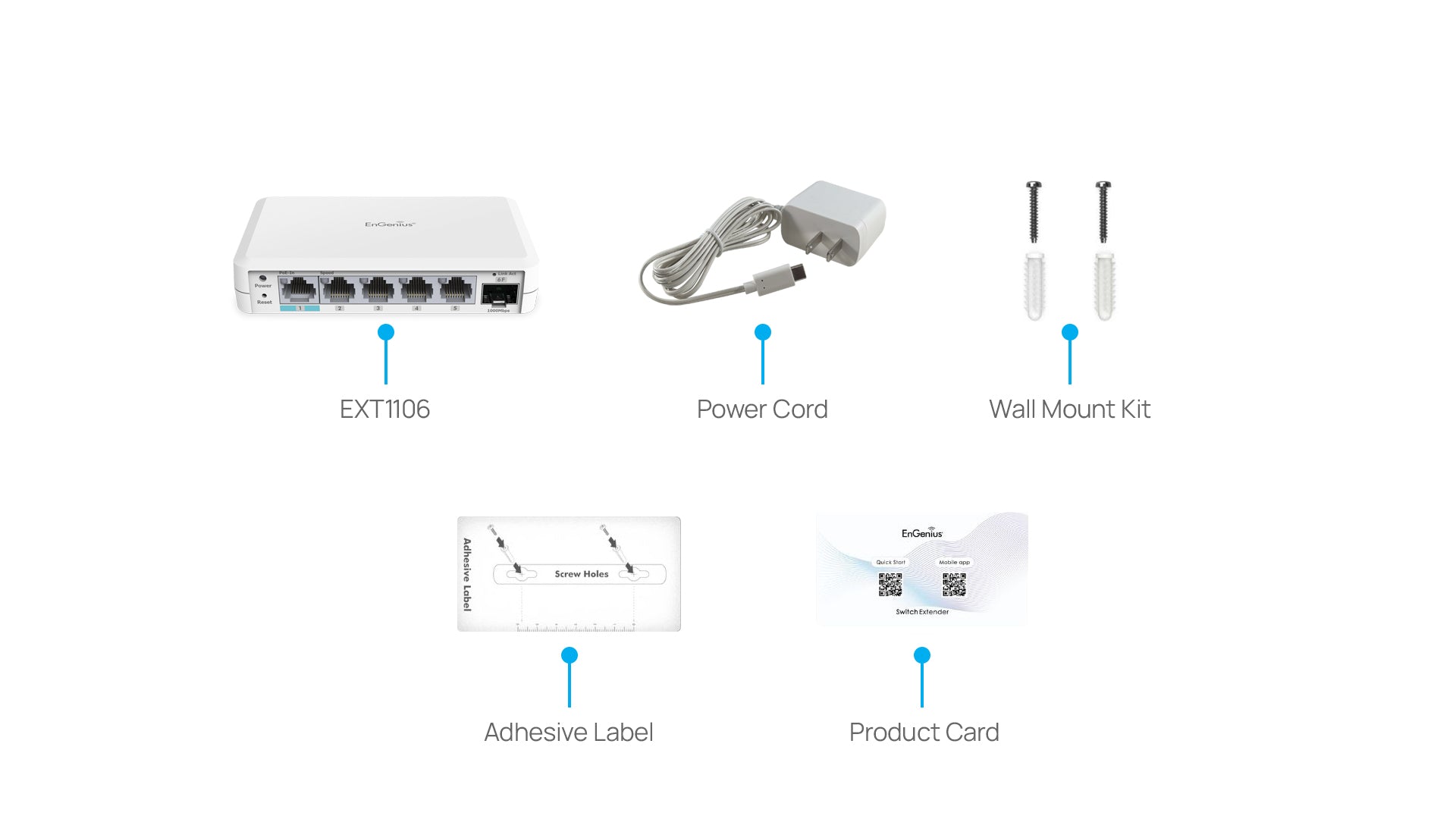

Package Contents
1 x 5 Ports Gigabit Switch Extender
1 x Product Card

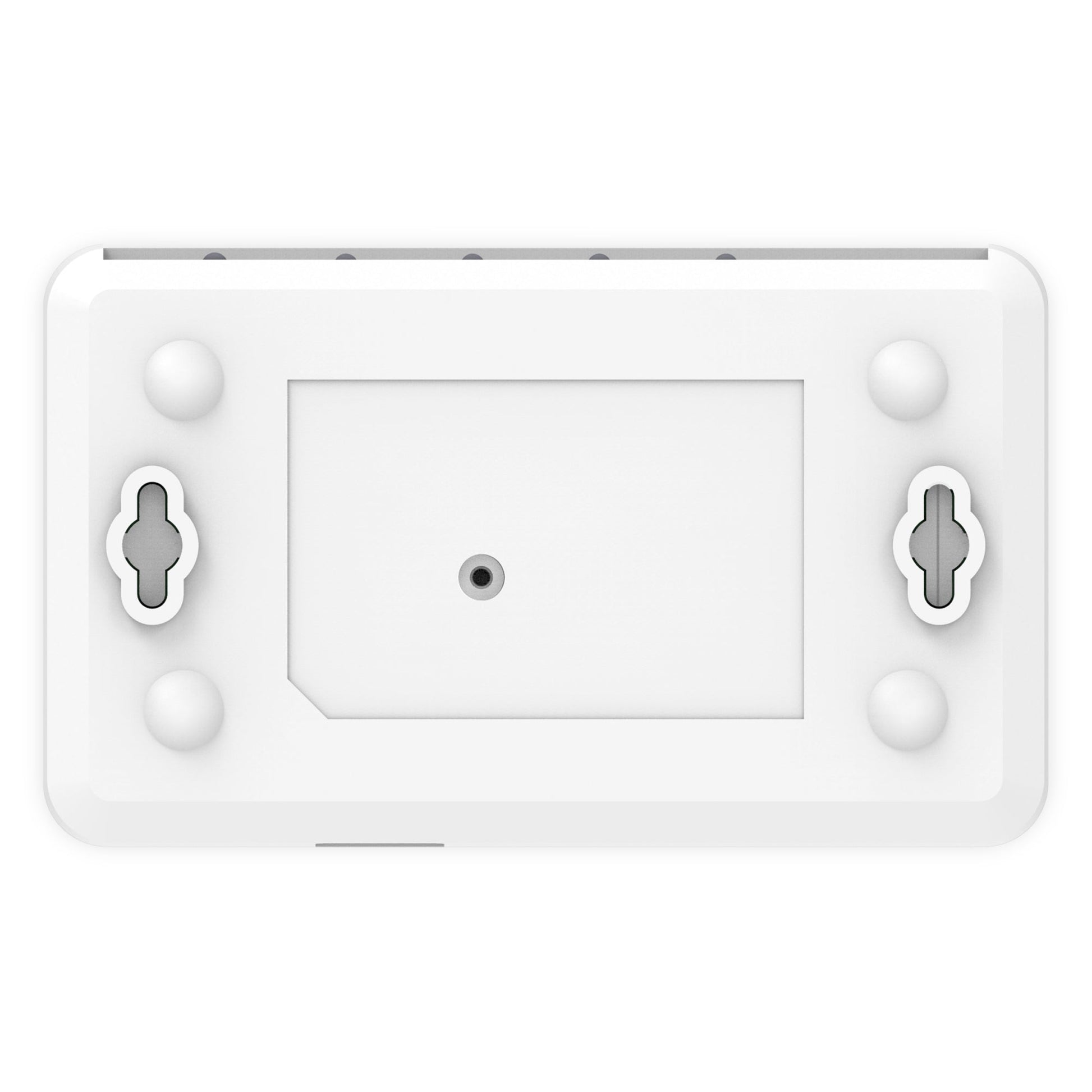

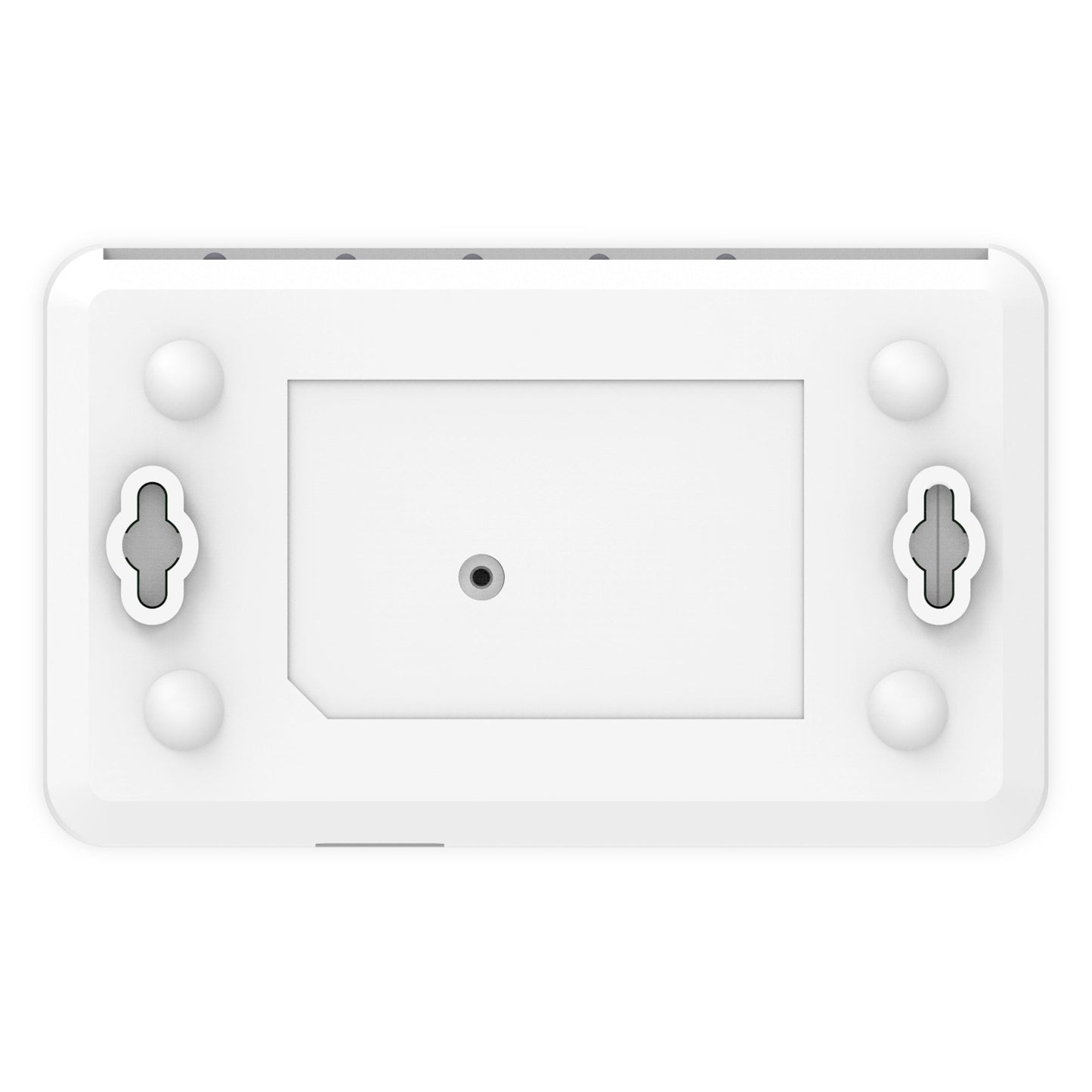

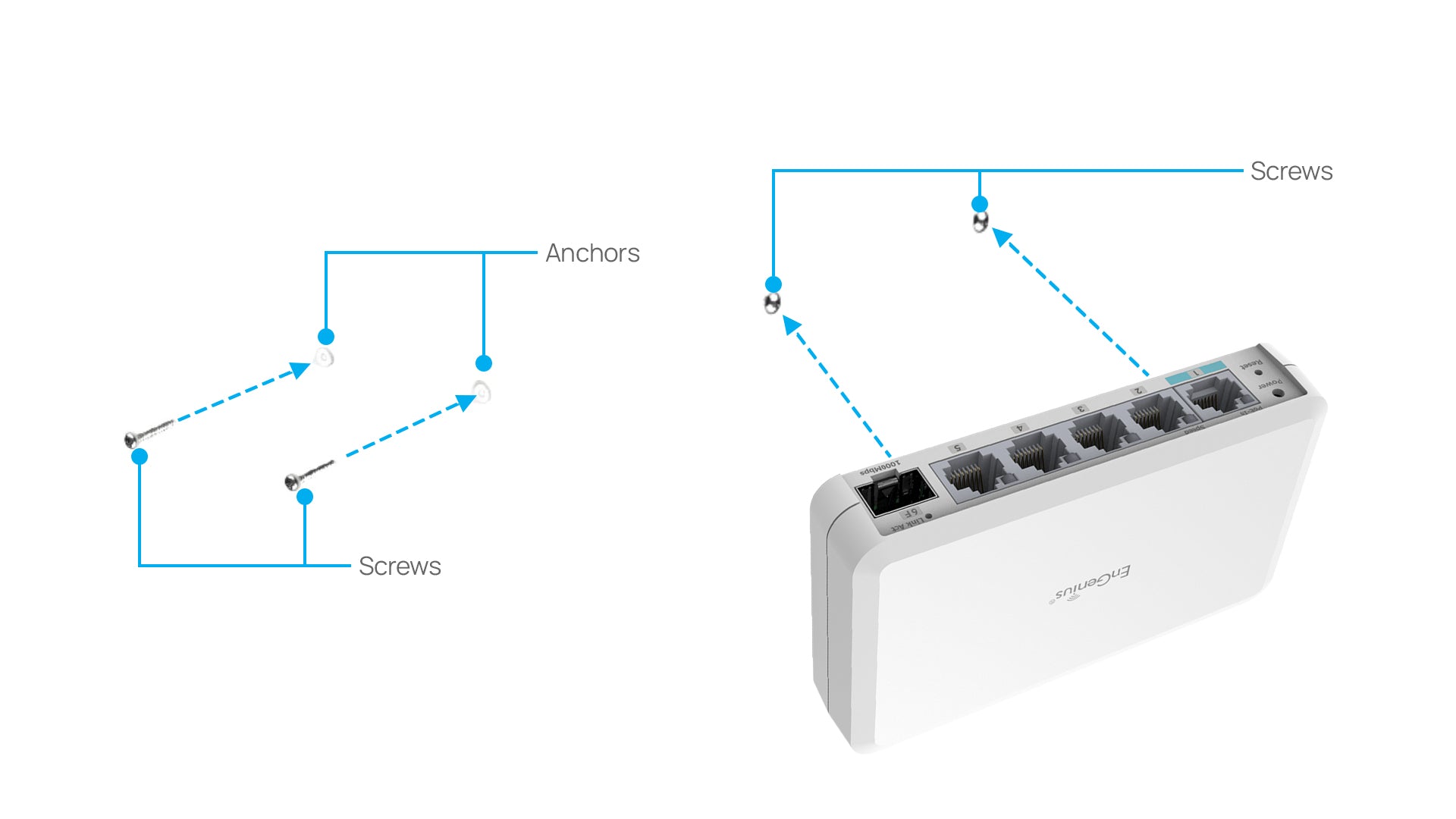

1 x Wall mount kit

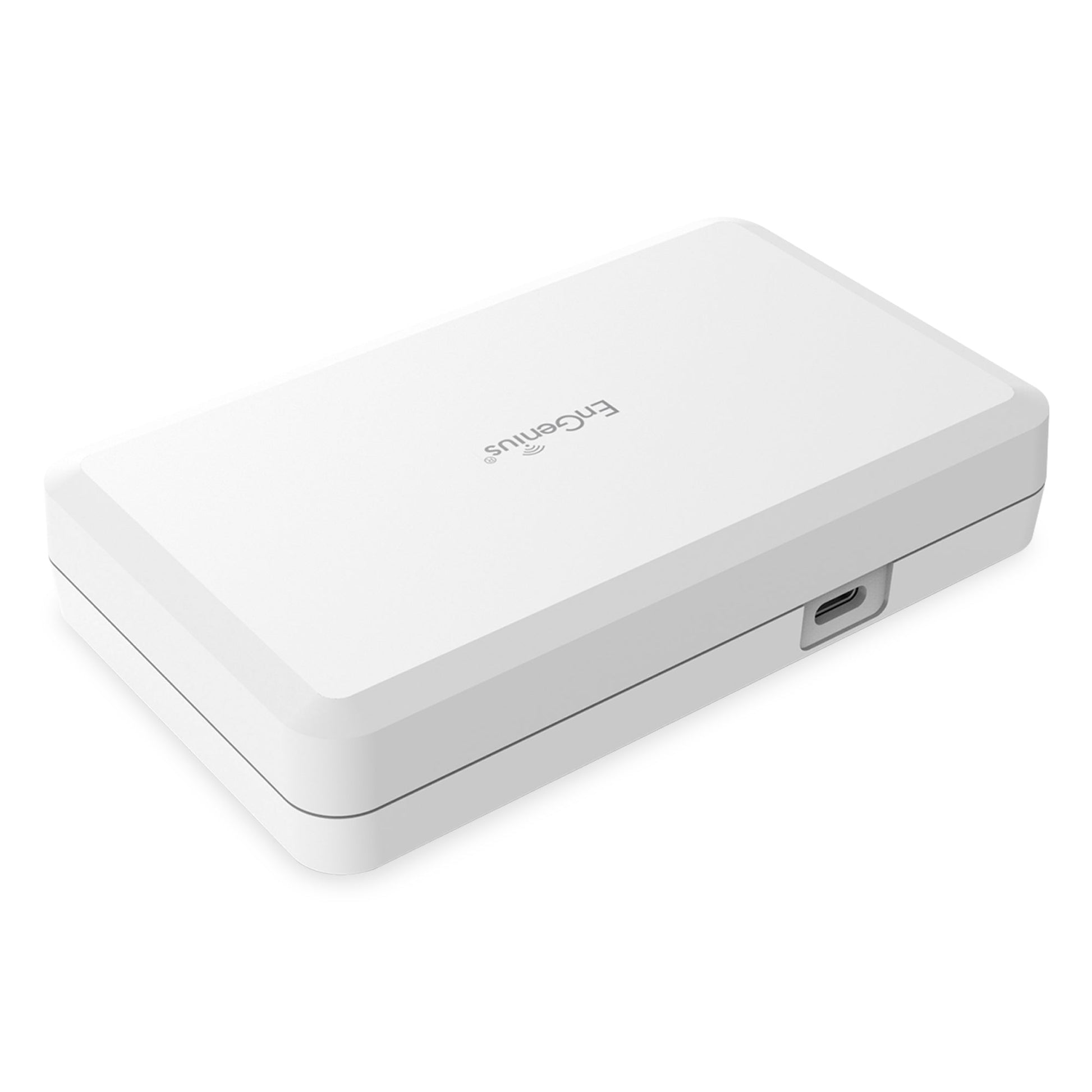

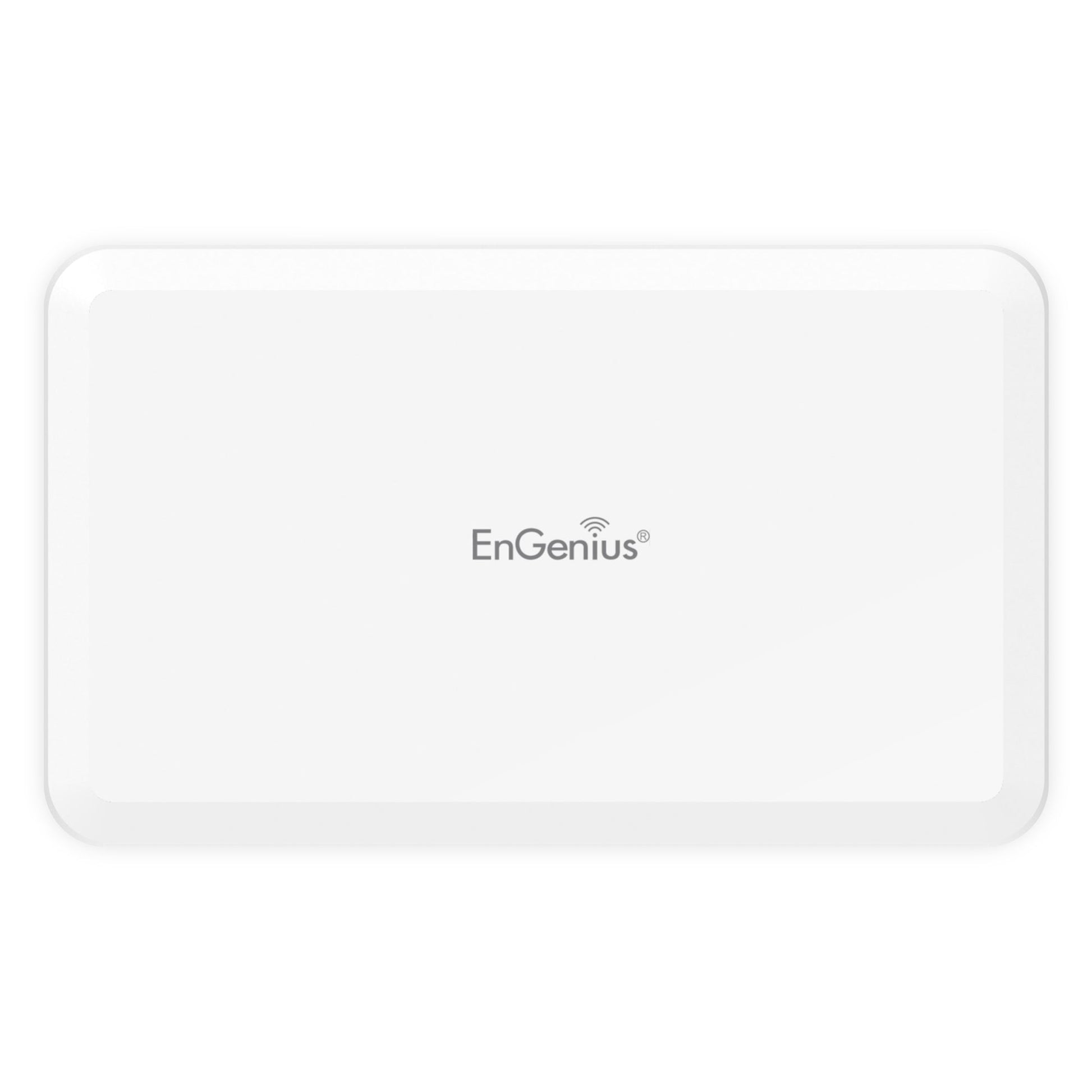

EXT1106 Device
Weight: 0.27lbs. (124 g)
Length: 4.92” (125 mm)
Width: 2.09” (73.9 mm)
Height: 1.10” (28 mm)

EXT1106 Packaging
Weight: 0.52 lbs. (240 g)
Length: 3.26” (83 mm)
Width: 2.91” (74 mm)
Height: 5.39” (137 mm)

Warranty
5 years

Certifications
CE
FCC
LVD
