• 48 10/100/1000 Base-T GbE Ports

• Full-featured Layer 2 plus switching

• 802.3at/af PoE+ ready on all ports with 410W PoE budget

• 104 Gbps switching capacity

• Setup in minutes with app-based step by step instructions

• Quick-scan device register, remote monitoring and troubleshooting

• Real-time system metrics, analytics and remote configurations

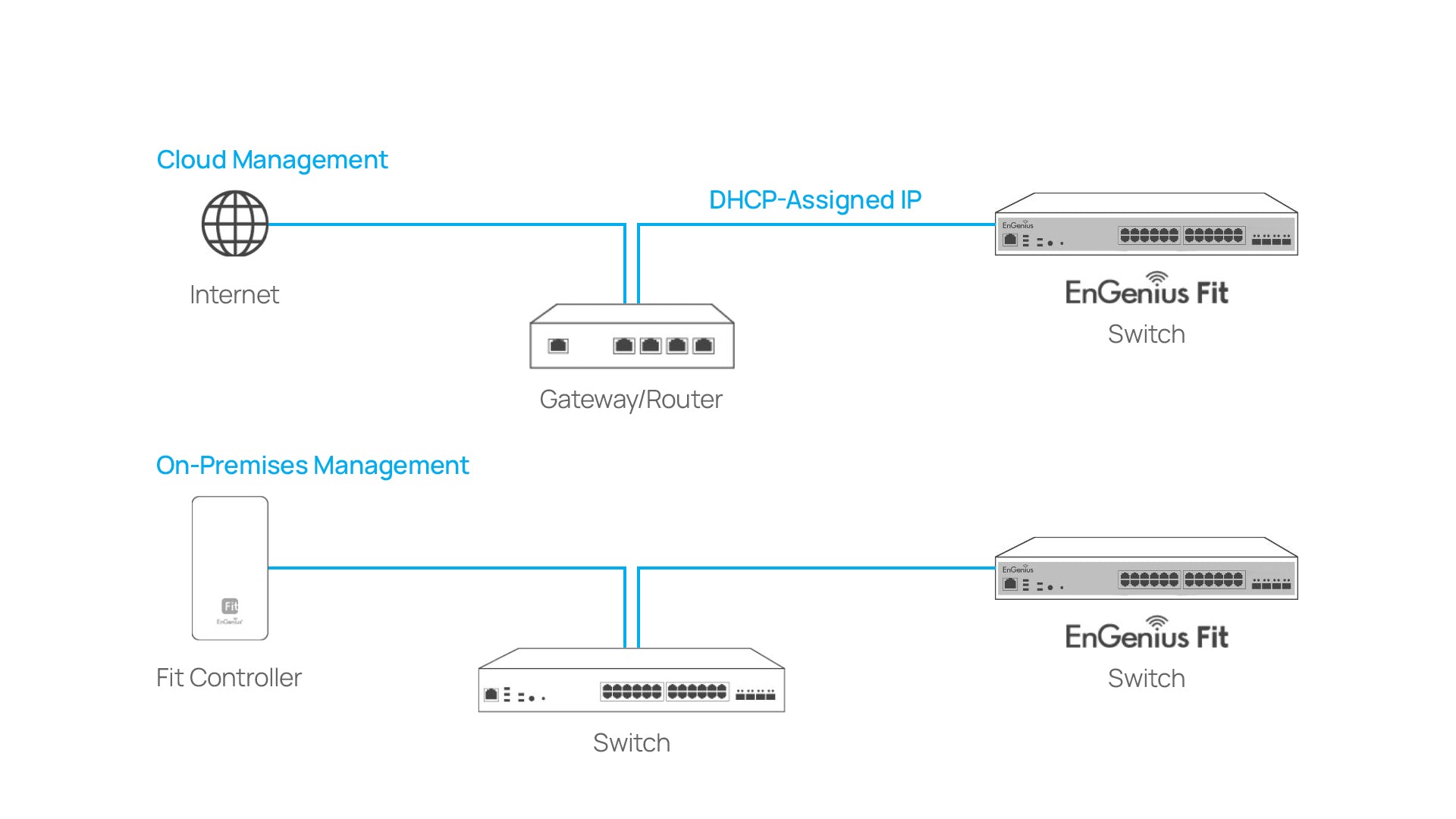

• Hybrid switch supports multiple management options

• From anywhere cloud visibility and control

• Monitor a site or multiple sites with no recurring cost or licensing fee

• Security - access control list/port security; 802.1x authentication

• IGMP & MLD snooping provides advanced multicast filtering & network efficiency

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
48 10/100/1000 Mbps Ports
4 10/100/1000 Mbps SFP Ports

Switching Capacity
104Gbps

PoE Capable Ports
1-48 (802.3at/af)
All Gigabit Ethernet ports can output up to 30 Watts

Total PoE Budget
410W

SDRAM
256MB

Flash Memory
32MB

Packet Buffer Memory
1.5MB

Address Database Size
8,000 MAC Addresses

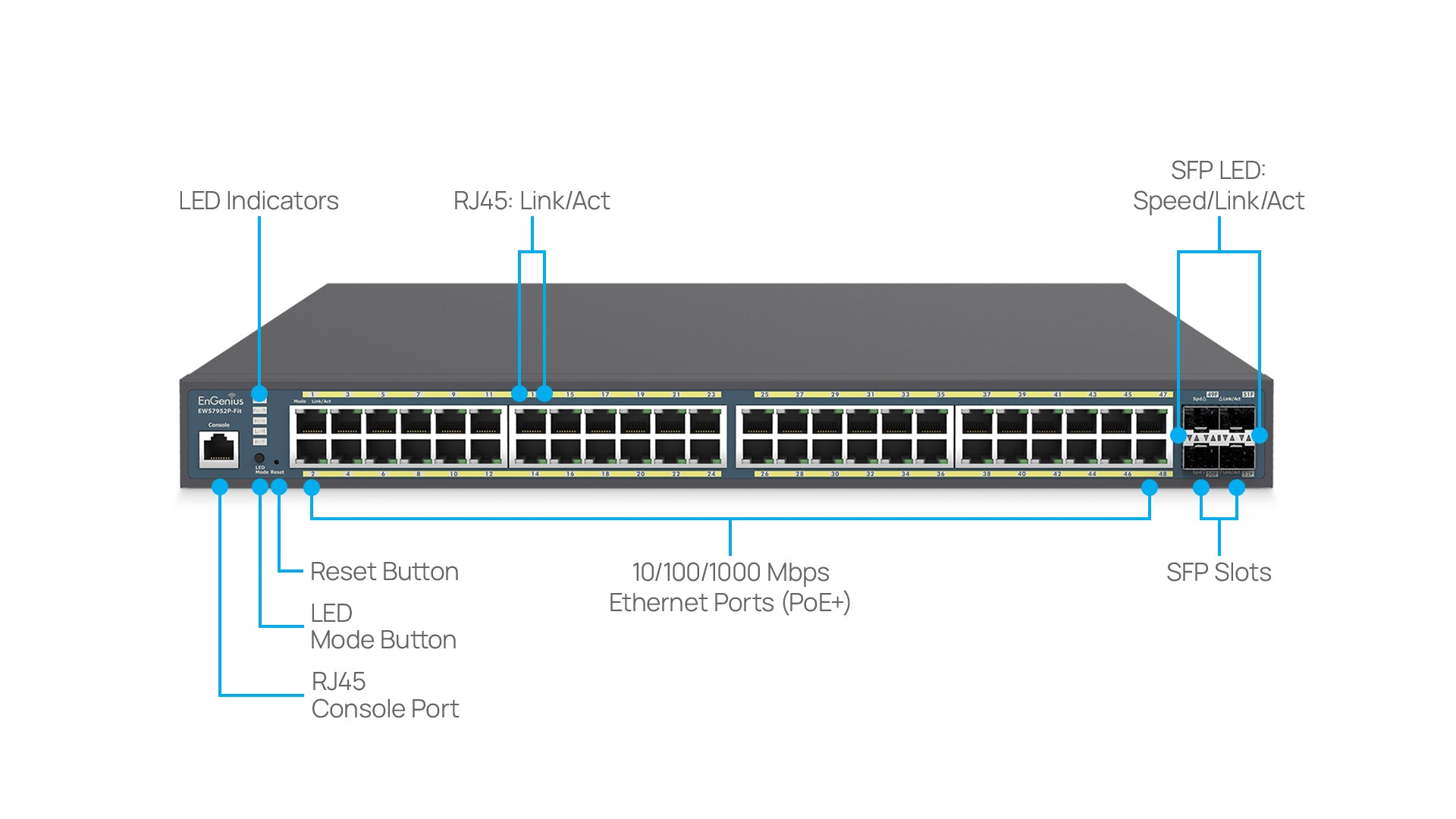

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

SFP Ports
Link/Act LED

Reset Button

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 59 entries

IPv6 Static Route
Max. 5 entries

MAC Address Table
8K

Jumbo Frame
9K

Multicast Group
Max 256 groups

Port Security
Max. 256 Entries

SSL Certificate
Certificate/Key Update

L2 Features
802.1Q VLAN tagging
VLAN Table
Port-based VLAN
Voice VLAN
GARP VLAN Registration Protocol
802.1d Spanning tree
RSTP
CIST
MSTP
802.3ad Link Aggregation
Loopback Detection

L3 Features
IGMP Snooping
MLD Snooping
DHCP Snooping
DHCP Relay
Static Route

Port Settings
Multicast Filtering
EEE
Port Isolation
Port Mirror
Jumbo Frames
LLDP

Security
802. 1X Radius Authentication Protocol
Access
Web
HTTP Service
HTTPs Service
Command Line Interface (CLI)
Telnet Service
SSH Service
Port Security
Radius Server
DoS Prevention

System Settings
IP Settings
IPv4 Management
IPv6 Management
IPv4 Network
ARP Table
ARP Statistics
Simple Network Time Protocol (SNTP)

Analyze
Log
Local Logging
Remote Logging

Diagnostic
Cable Diagnostics
Ping Test
IPv6 Ping Test
Trace Route
Connection Diagnostic

Access Control List (ACL)
MAC Based ACL
MAC ACE
IPv4 ACL
IPv4 ACE
IPv6 ACL
IPv6 ACE
ACL (Port) Binding

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

QoS
CoS Mapping
DSCP Mapping
Port CoS
Bandwidth Control
Storm control
Advanced Mode
Class Mapping

MIB/RFC Standards
RFC1213
RFC1493
RFC1757
RFC2674
RFC2863

Temperature Range
Operating: 32 to 122°F/0 to 50°C
Storage: -40 to 158°F/-40 to 70 °C

Humidity (Non-Condensing)
5% - 95%

EWS7952P-FIT Device
Weight: 12.3 Ibs. (5.6 kg)
Width: 17.32” (440 mm)
Length: 12.20” (310 mm)
Height: 1.73” (44 mm)

Packaging
Weight: 15.52 lbs. (7.04 kg)
Width: 21.57” (548 mm)
Length: 16.88” (429 mm)
Height: 4.13” (105 mm)

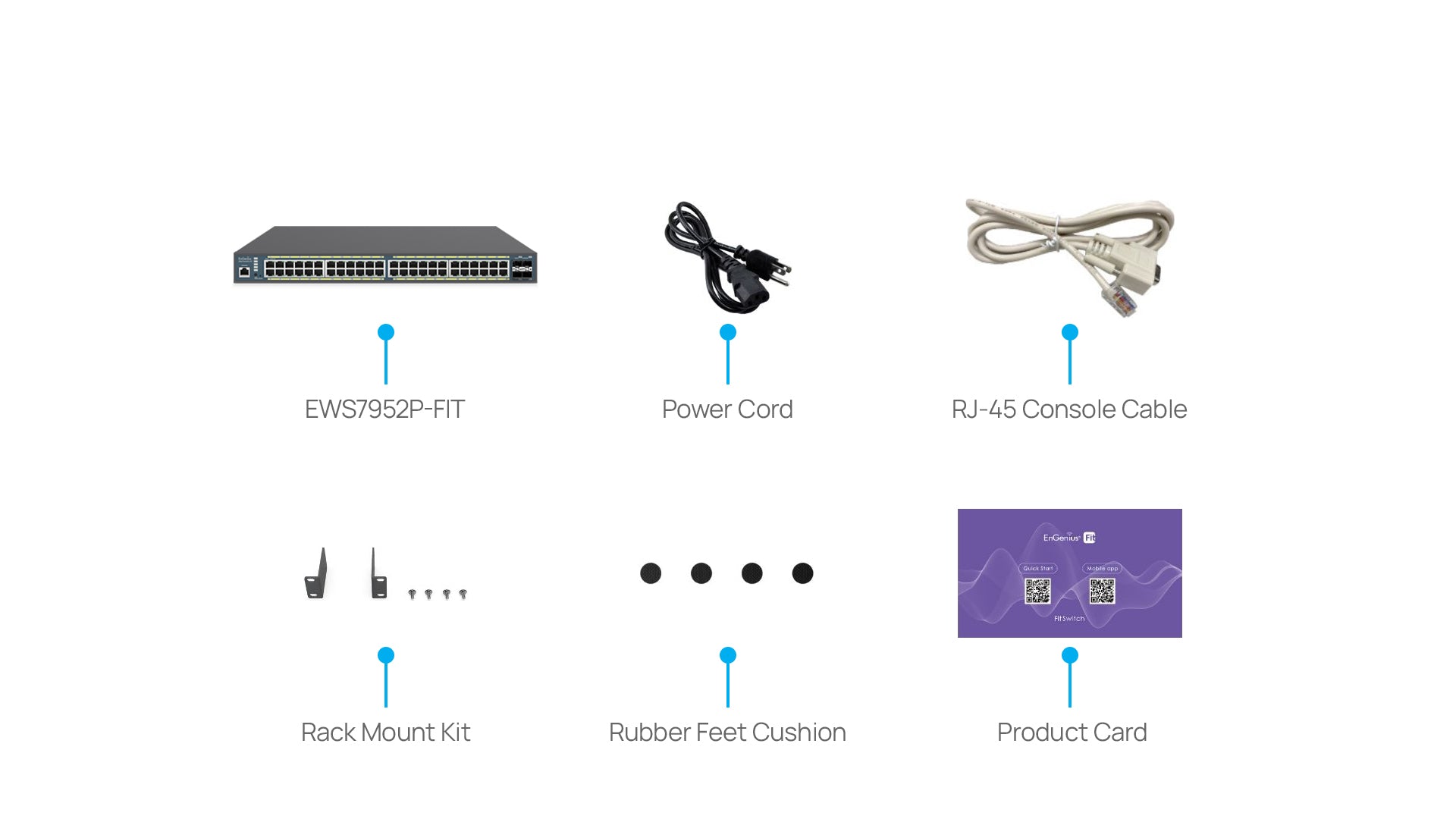

Package Contents
(1) EWS7952P-FIT Managed Gigabit PoE+ Switch
(1) Power Cord
(1) RJ45 Console Cable
(1) Rack Mount Kit
(1) Quick Installation Guide


Certifications
CE
FCC
IC
