EPA5006GR: Gigabit 32瓦專用型 PoE 電源供應器，帶重置按鈕

$1,190.00 TWD

支援高速數據傳輸，並為相容網路設備提供高達32.8瓦電力，距離可達328英尺（約100公尺）

EnGenius EPA5006GR Gigabit 專用型 PoE 電源供應器支援高速數據傳輸，並提供高達32.8瓦電力。其緊湊的端口設計，便於安裝，內建突波保護功能，有效保護寶貴設備。PoE 注入器設置於靠近地面的地方，帶有重置按鈕，管理員可方便地重置設備，無需拆卸。

查看完整詳情

Gigabit PoE 供電器 | 32.8W 大功率 | 一鍵重啟功能

EnGenius EPA5006GR 專屬 Gigabit PoE 供電器提供高速資料傳輸與 32.8W 供電功能。採用精巧設計，安裝簡易，並具備電源突波保護功能。特別設計的重置按鈕位於接近地面處，管理者可輕鬆重啟設備，無需拆卸。

- EPA5006GR 產品規格表

功能特色

EPA5006GR

產品規格

產品特色

Delivers both data and power to PoE-compatible devices

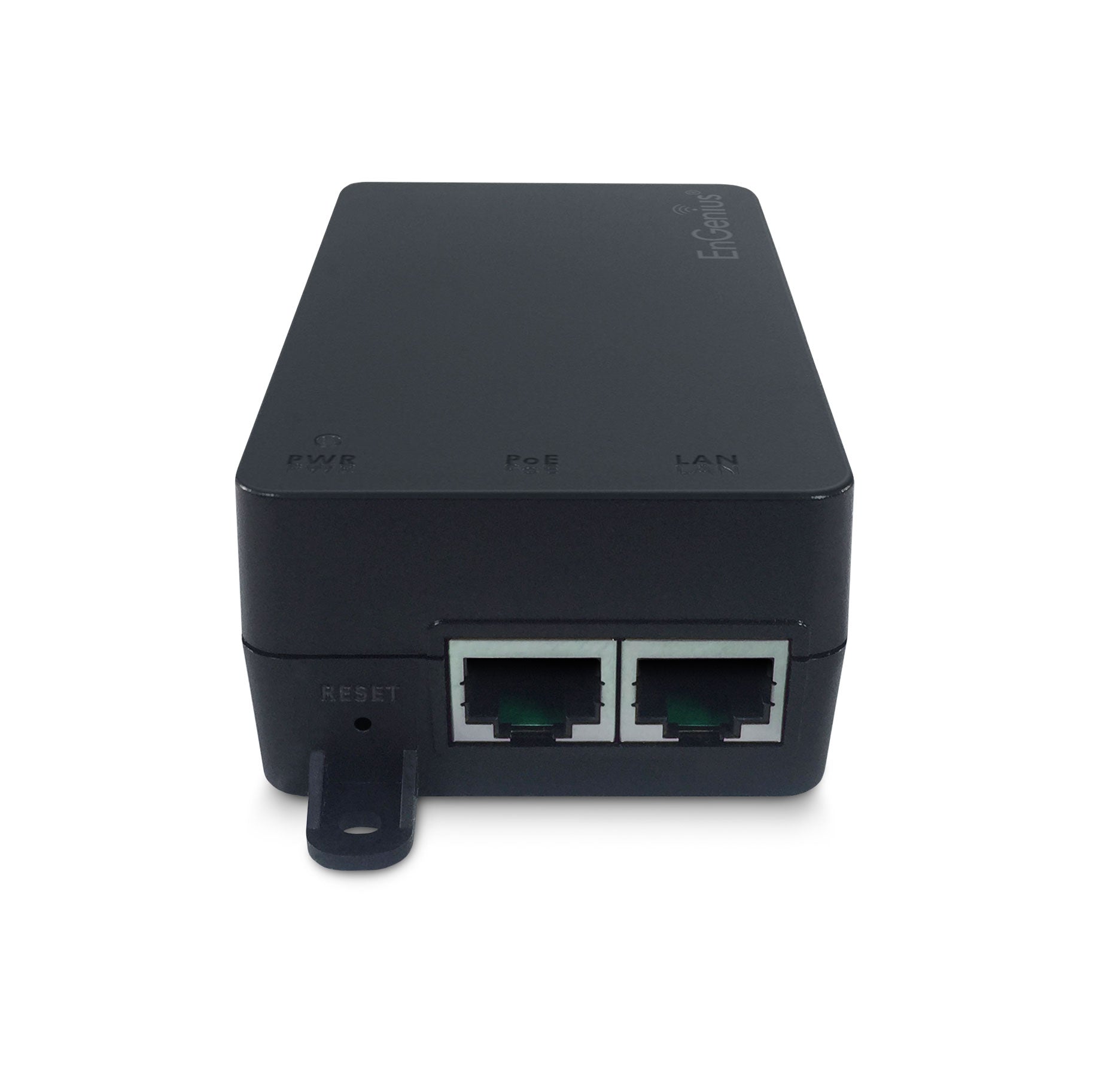

PoE injector reset button positioned conveniently near ground level

Optimal port design for easy mounting/positioning

Compact design

Extends power to unwired areas up to 328-ft./100m

Gigabit Ethernet in & out ports allow connection of high-speed devices

Disconnect, short-circuit & surge protection assures secure, reliable connections

Sends up to 32.8W of output power for connecting APs, IP cameras, VoIP phones & more

Mounts to walls or ceilings with included hardware

技術規格

Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Proprietary PoE

Compliance
IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE

Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
(1) Reset button.

LED Indicator
1 x Power on Green

Mounting
Wall (anchors & screws included)

電源相關規格

Input Voltage
100 to 240VAC

Input Current
0.8A Max for 100VAC

AC Input Frequency
47-63Hz

Maximum Output Power
32.8W

Power Lines
Pin4, 5:54V, Pin7, 8:Return

Added Protection Features
Short-Circuit
Surge (over current/over voltage)

環境與實體規格

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -22°F to 176°F (-30°C to 80°C)

Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less

尺寸重量

EPA5006GR Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)

Packaging
Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)

Package Contents
EPA5006GR
Power Cord
