FitCon100: EnGenius Fit 本地管理型網路控制器

$5,000.00 TWD

適合需要快速輕鬆管理無線基地台與交換器的小型企業

EnGenius FitController 適用於需要快速輕鬆管理無線基地台與交換器的小型企業 IT 管理員或管理者。FitController 的直覺化介面與簡單的即插即用整合功能，可安全提供高效的設備管理，並透過雲端存取功能允許從單一入口遠端管理多個網路，無需專用伺服器。

不包含直流電源供應器。

查看完整詳情

數量

小型企業專用網管控制器 | 直覺操作 | 雲端遠端管理

EnGenius FitController FitCon100 專為小型企業 IT 管理者設計，提供直覺式介面與簡易即插即用安裝，讓您輕鬆管理 AP 與交換器。透過雲端管理功能，無需專屬伺服器即可從單一入口遠端管理多個網路。

本產品不含變壓器。

- FitController 規格表
- EnGenius Fit 常見問題
- FitCon100 快速安裝指南

Features

產品概觀

包裝內容

安裝方式

部署說明

FitCon100

產品規格

產品特色

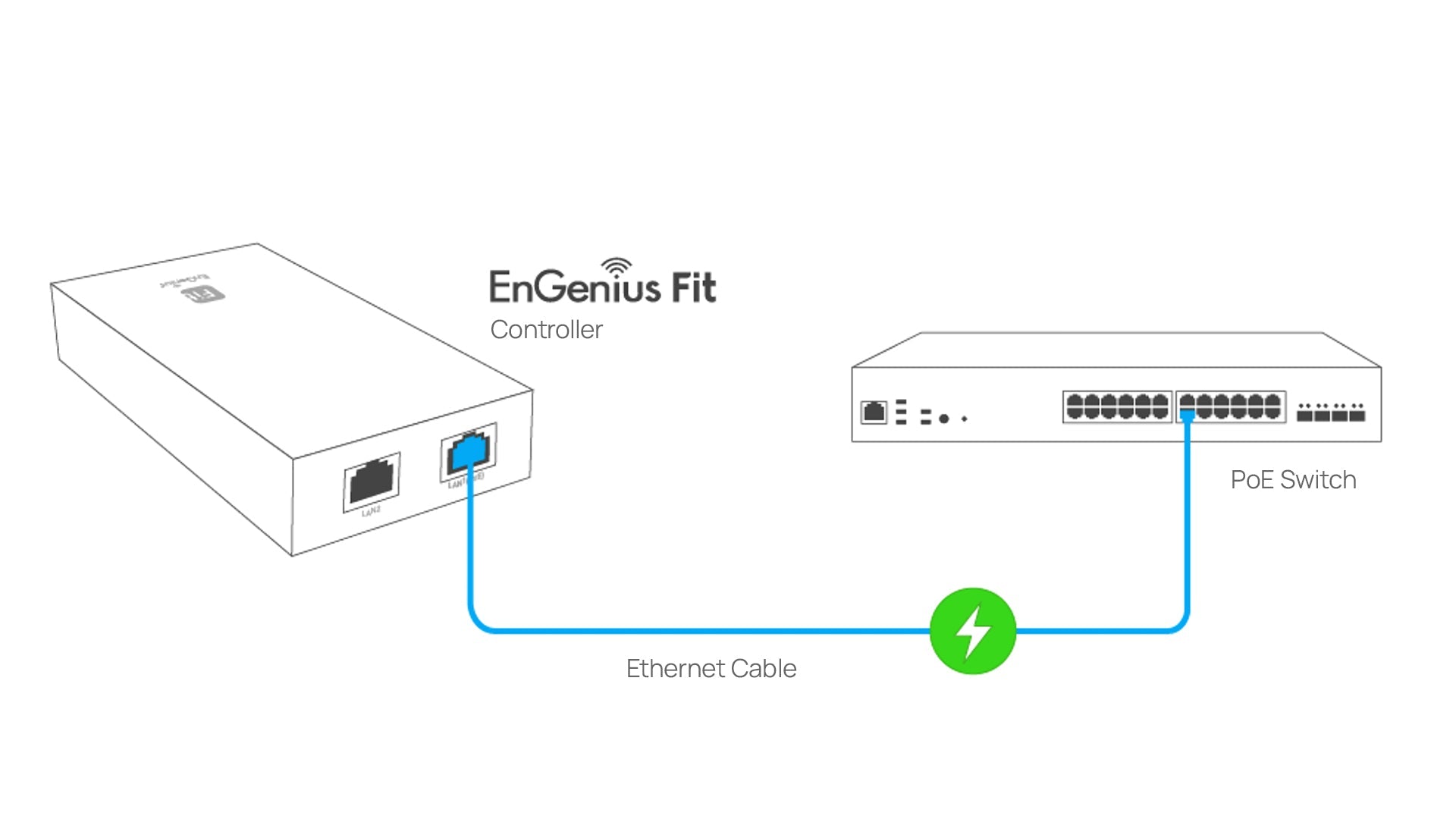

Plug and play installation. Simply plug into PoE Ethernet switch. No additional download or training required

Fast deployment with quick-scan device registration & configuration

Network management for up to 100 EnGenius Fit access point and switches

License-free on-premises network management with a comprehensive line of wired and wireless networking products

Hierarchy view to quickly structure customer sites and organize networks

Network health view to analyze networks and report potential issues

Multi-tenant user login privileges

Device two-factor authentication to ensure only authorized devices are on the network

Enhanced Wi-Fi security WPA3 for employee as well as guests

Support up to 8 networks per user account

Create separate employee and guest networks to keep traffic isolated

Set limits to stop bandwidth hogs

Built-in powerful Qualcomm Qual-Core CPU

Micro SD slot for extra back-up

802.3af or DC12/1A input power source

CPU

Model
Qualcomm Cypress IPQ6010

Clock Rate
Quad-Core Cortex A53 1.8 GHz

Hardware Encryption Acceleration
Yes

記憶體

System Memory
DDR4 1GB x 2

儲存

eMMC
8GB (MLC)

接口與指示燈

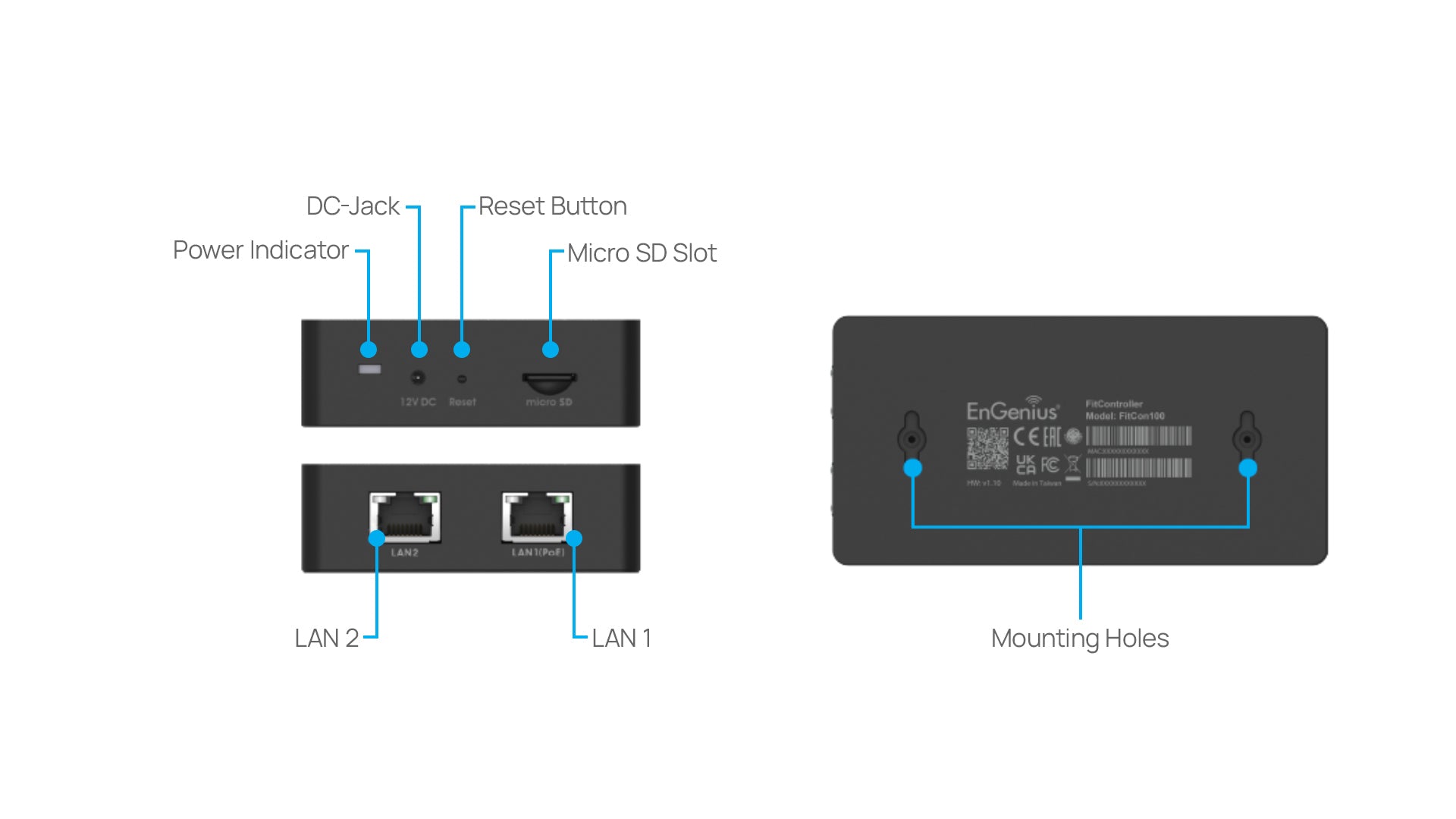

Interfaces and LEDs

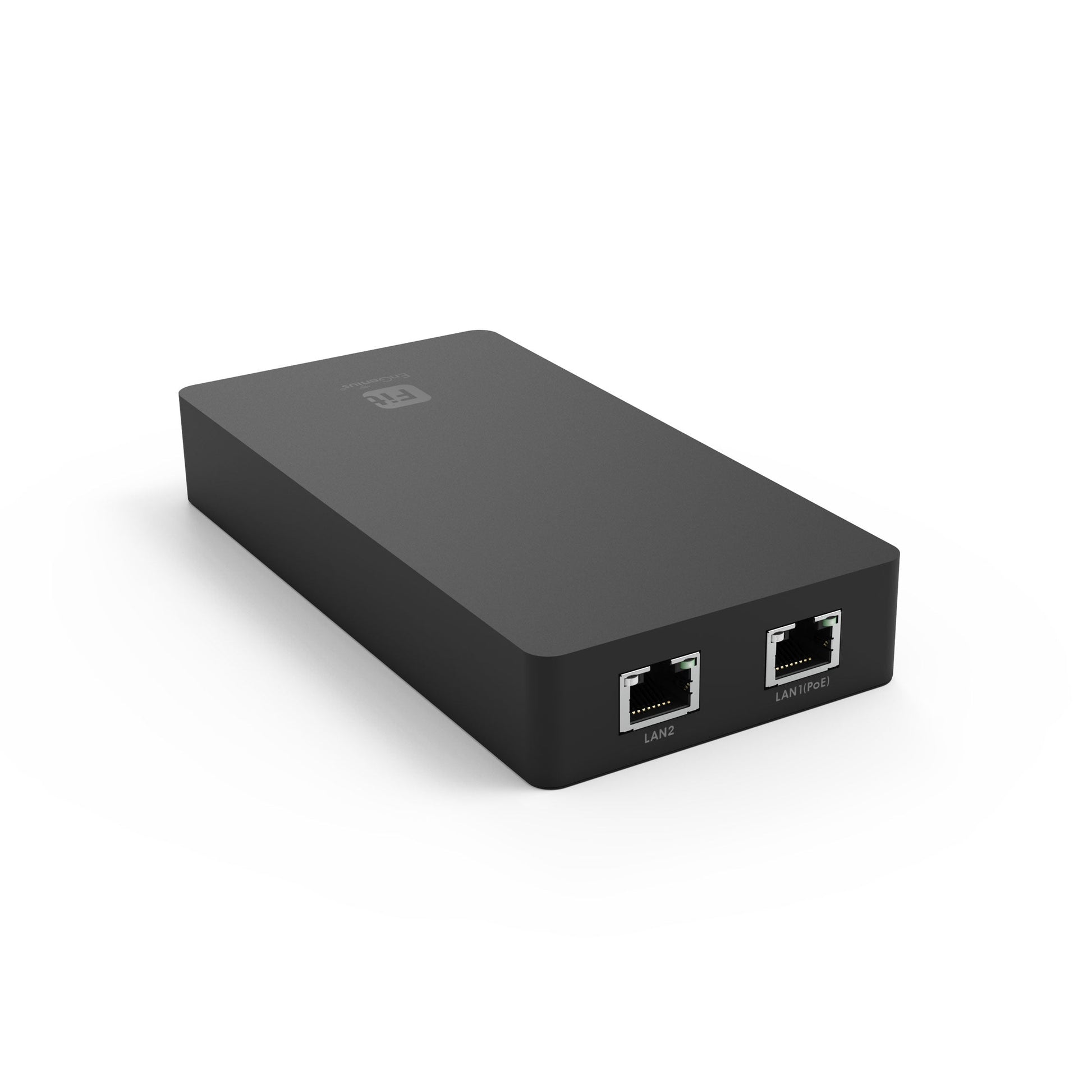

2 x 10/100/1000 Mbps RJ45 ports (1 x PoE)
1 x Micro SD Slot

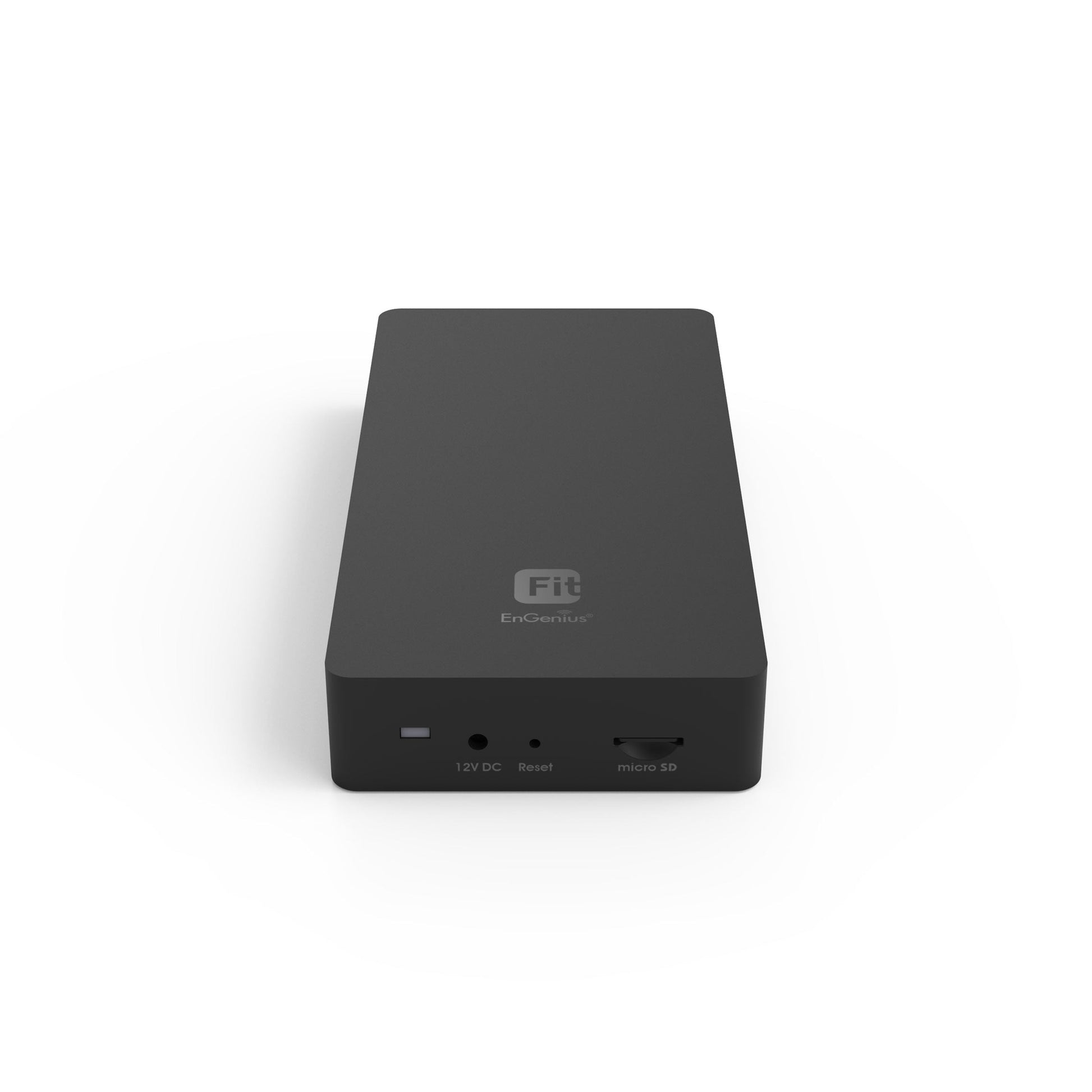

1 x DC-Input Jack
1 x Reset Button
1 x Power LED (Orange)
2 x LAN LED (Green)

LED Indicators
1 x Power
2 x LAN

Power Source
Power-over-Ethernet: 802.3af Input
12VDC /1A Power Adapter (Not Included)

Maximum Power Consumption
Under 5W

環境與實體規格

Operating
Temperature: 0°C~40°C (32°F~104°F)
Humidity: 0%～90% typical

Storage
Temperature: -40°C~80°C (-40°F~176°F)
Humidity: 0%～90% typical

尺寸重量

FitController Device
Weight: 0.36 lb (165g)
Length: 6.02” (153mm)
Width: 3.04” (77.4mm)
Height: 0.98” (25mm)

Packaging
Weight: 0.57 lb (260g)
Length: 6.99” (177.75mm)
Width: 3.99” (101.5mm)
Height: 1.71” (43.5mm)

Certifications
FCC
IC

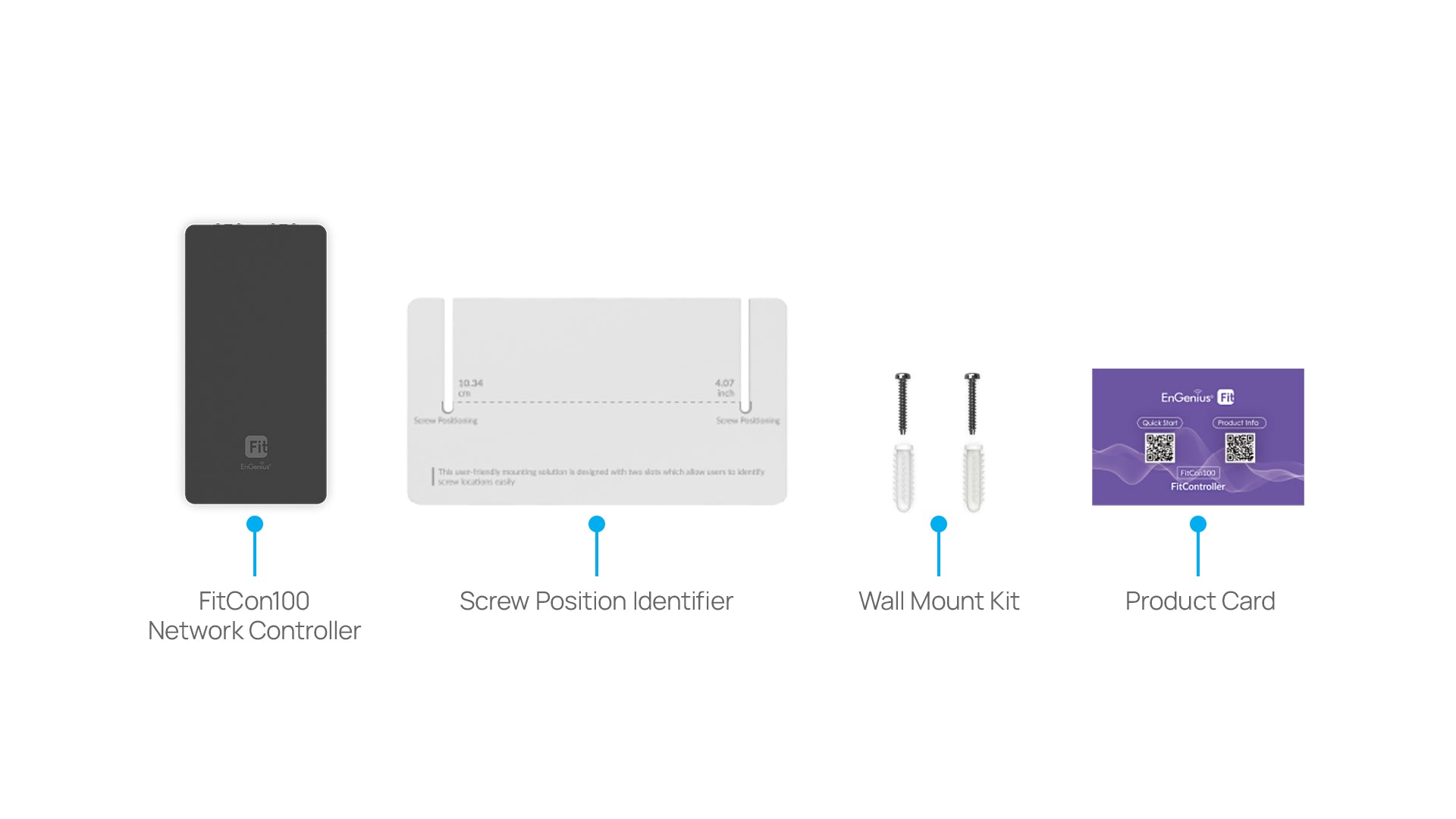

Package Contents
1 – FitController
1 – Screw Position Idenifier

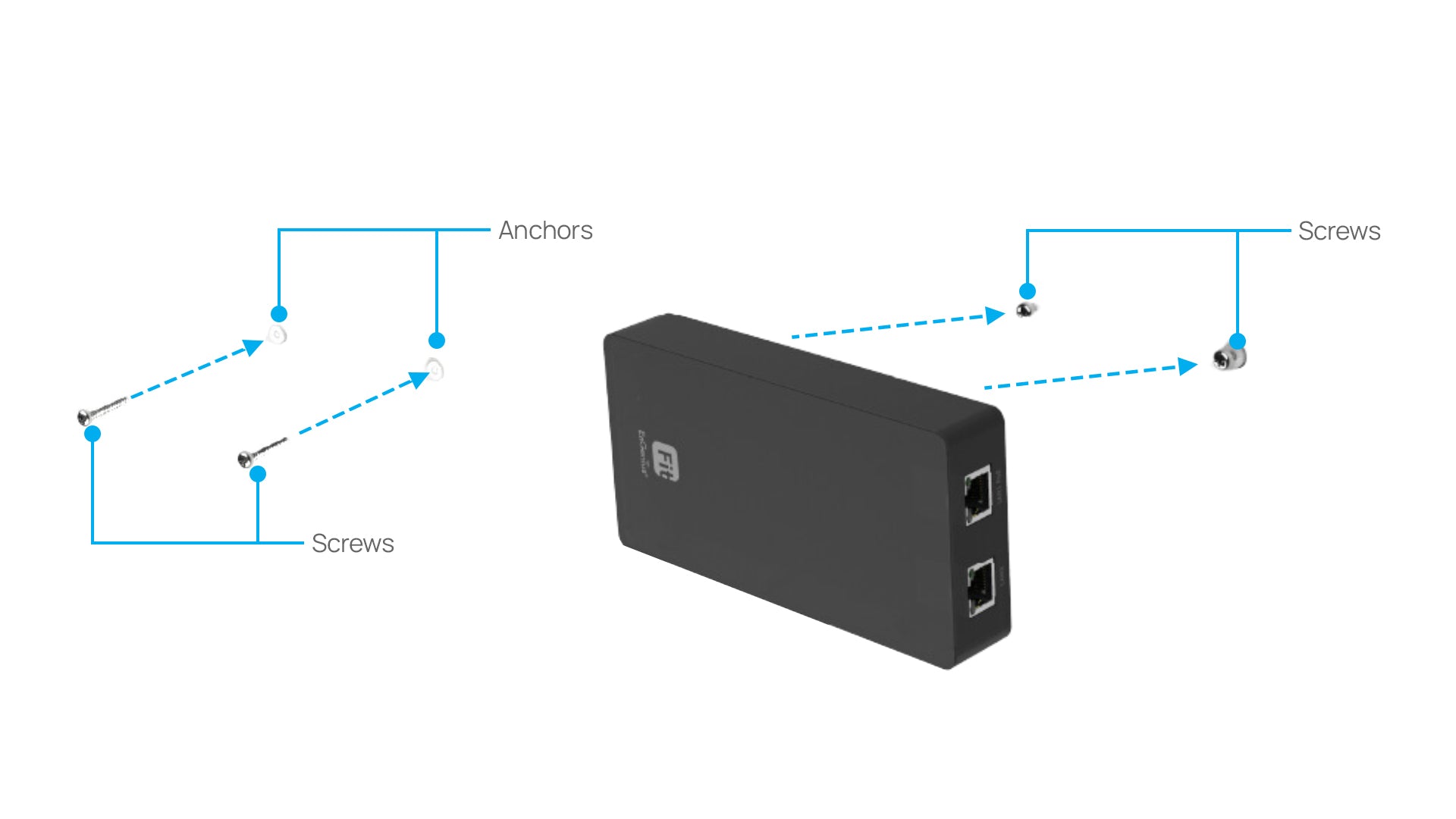

1 – Wall Mount Screw Kit
(Excludes Power Adapter)

Warranty
1 Year
